SWN-2181-TRA-T Active
Pin Diode Transfer Switch

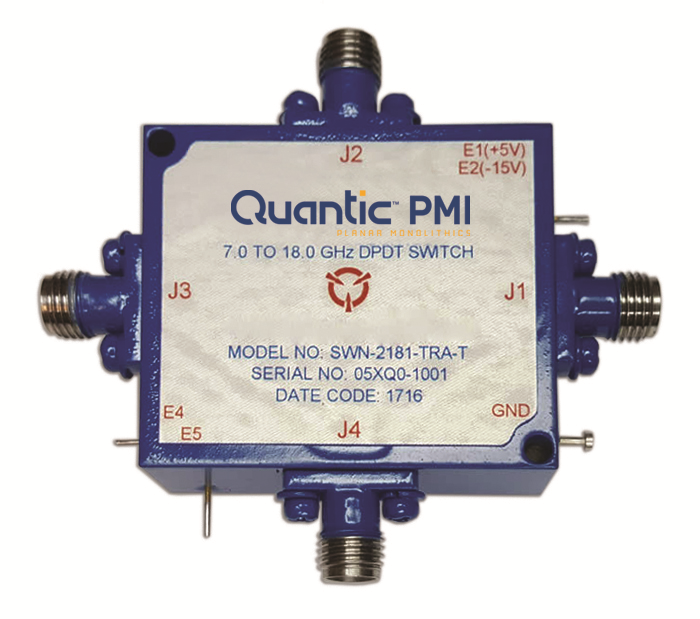

Quantic PMI Model SWN-2181-TRA-T is a pin diode transfer switch that operates over the 7 to 18 GHz frequency range that has 60 dB minimum of isolation, maximum insertion loss of 5 dB and a switching speed of 500 ns maximum. This transfer switch is uniquely designed to allow only one path at a time while unused ports are terminated. Housing size is 1.5" x 1.25" x 0.5" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Configuration: | XFER / DPDT |
| Reflective / Absorptive: | Absorptive |
| Frequency (GHz): | 7 to 18 |
| Frequency Min (GHz): | 7 |
| Frequency Max (GHz): | 18 |
| Insertion Loss (dB): | 5 dB Max |
| Insertion Loss - Typ (dB): | 5 dB Max |
| Isolation (dB): | 60 dB Min |
| Isolation - Typ (dB): | 60 dB Min - Measured 71.5 dB |
| Switching Speed: | 500 ns Max |
| Switching Speed - Typ: | 100 ns |
| Delay On/Off: | 500 ns Max - Measured 55 ns |
| Input Power: | 2 W (30% Duty Cycle and 130 µs Pulse Width) |
| VSWR In/Out: | 1.6:1 Max (Port Selected), 2.0:1 Max (Port Not Selected) |
| DC Power Dissipation: | 2.25 W |
| Control Signal: | TTL |
| Connectors: | SMA Female |
| Size: | 1.50" x 1.25" x 0.50"w 38.10 mm x 31.75 mm x 12.70 mm |
| Sealing: | Hermetically Sealed |
| Finish: | Painted Blue |
| Weight: | 0.21 lbs Max |
| Export Classification (ECCN): | EAR99 |
