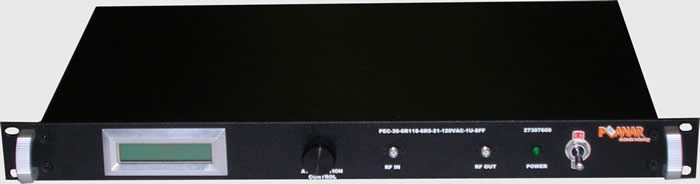

Quantic PMI offers integrated microwave assemblies that provide high gain and feature integrated digitally controlled attenuators with ranges up to 60 dB. The attenuation can be controlled via the external optical encoded knob or via RS-232 and Ethernet. The amount of selected attenuation is displayed on the front panel LCD screen.
If you do not see exactly what you need, please click here, and send us your requirement(s) or questions so we can propose an instant solution.
Features that are supp
Standard Features:
- 6 foot power cord supplied
- On / Off Power Switch with LED indicator
- Attenuation level displayed on the LCD display
- Attenuation control via front panel optical encoded knob or via RS-232 and Ethernet
- Real-Time attenuation control
Available Options:
- Ultra-Fine 0.25 dB/Step Attenuation Resolution
- Internal High Speed Modulator
- Other Gain Levels from 0 dB to 80 dB
- Frequency Ranges from 0.01 to 40 GHz
- Higher Output power levels up to +30 dBm
- 220 VAC (European Compatible) Voltage Supplies
Standard Models:
| Model Number | Frequency
Range (GHz) | Gain (dB) | Gain Flatness (±dB) | Noise
Figure (dB) | OP1dB
(dBm)) | VSWR | Operating Voltage | Housing |
| 0.1 - 18 | 40 | 3.5 | 6.5 | 20 | 2.0:1 | 115 VAC | 1U, 19" |
| 0.1 - 18 | 50 | 2.0 | 6.0 | 18 | 2.0:1 | 115 VAC | 1U, 19" |
