2SFB-8G26G-CD-SFF Rev C

In Stock: 1

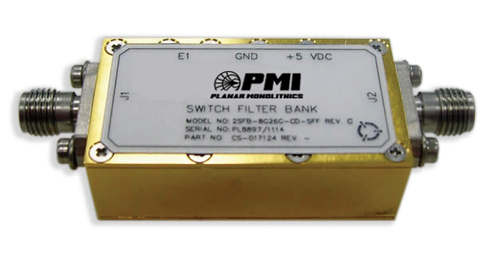

PMI Model No. 2SFB-8G26G-CD-SFF Rev C is a 2 channel switch filter bank providing a low-pass filter that passes 8.62 to 8.70 GHz with a rejection band of 17.24 to 17.4 GHz. In by-pass mode the unit passes signals from 8.0 to 26.5 GHz. This unit is powered by a +5 V single supply and the control logic is TTL/CMOS +5V compatible.

Product Specifications

General Parameters:
Status: Active
No of Filter Channels: 2
Full Operating Frequency: 8.0 - 26.5 GHz
Insertion Loss: 5.5 dB
Switching Speed: 100 ns
Control Type: TTL/CMOS
Size: 1.5" x 0.8" x 0.5"
Isolation: 50 dB Min (Between 8.0 and 26.5 GHz) - Measured >50 dB
VSWR: 2.0:1 Max across frequency range - Measured 1.45:1
RF Power Rating: AC coupled
Connectors: SMA (F) removable
Environmental Ratings:
Operating Temperature: -10 ºC to +70 ºC
Non-Operating Temperature: -30 ºC to +100 ºC
Humidity: <= 95% Non-Condensing at 40 ºC
Altitude: Sea Level to 15,000 Feet
