2SFB3000-6G-CD-SFF

2-Channel Switch Filter Bank

Buy Now

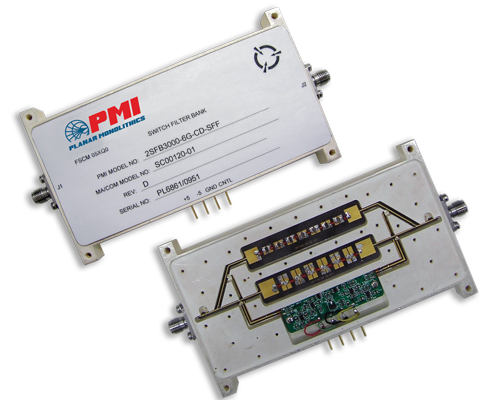

Model 2SFB3000-6G-CD-SFF is a a two channel switch filter bank. Channel 1 is centered at 1900 MHz and has a 64 MHz bandwidth. Channel 2 is centered at 1100 MHz and has a bandwidth of 64 MHz. This model offers fast switching speeds of less than 50 ms.

Channel 1 Specifications:
Channel 1Center Frequency1900 MHz
Channel 1 Passband1868 to 1932 MHz
Cannel 1 Rejection

-60 dB Min @ 2015 to 6000 MHz

-60 dB Min @ DC to 1785 MHz

Channel 2 Specifications:
Channel 2 Center Frequency1100  MHz
Channel 1 Passband1068 to 1132 MHz
Channel 2 Rejection

-60 dB Min @ 1215 to 6000 MHz

-60 dB Min @ DC to 985 MHz

Product Specifications

General Parameters:
Status: Active
No of Filter Channels: 2
Full Operating Frequency: 500 - 6000 MHz
Insertion Loss: 7 dB
Switching Speed: 50 ms
Control Type: CMOS
DC Voltage: +5 VDC @ 70 mA,
-5 VDC @ 70 mA
Size: 2.7" x 4.4" x 0.44"
Isolation: 60 dB Min
VSWR: 2.0:1 Max
RF Power Rating: +30 dBm CW Max
Connectors: SMA (F)
Environmental Ratings:
Operating Temperature: -40 ºC to +85 ºC
Non-Operating Temperature: -40 ºC to +100 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
