P3T-9G10G-45-R-SFF Active
SP3T Reflective Switch
Additional Documents

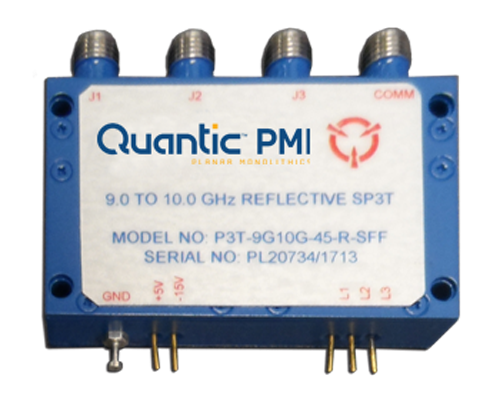

Quantic PMI Model P3T-9G10G-45-R-SFF is a 9 to 10 GHz, single pole, three throw, reflective switch capable of switching within 100 ns maximum that has a typical insertion loss of 2.7 dB and isolation of 45 dB with a VSWR of 1.8:1. Housing size is 1.85" x 1.25" x 0.4" and is outfitted with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Configuration: | SP3T |
| Reflective / Absorptive: | Reflective |
| Frequency (GHz): | 9 to 10 |
| Frequency Min (GHz): | 9 |
| Frequency Max (GHz): | 10 |
| Insertion Loss (dB): | 2.5 dB Typ, 2.7 dB Max |
| Insertion Loss - Typ (dB): | 2 dB |
| Isolation (dB): | 45 dB Min |
| Isolation - Typ (dB): | 45 dB |
| Switching Speed: | 100 ns Max |
| Switching Speed - Typ: | 100 ns |
| VSWR In/Out: | 1.8:1 - Measured 1.24:1 |
| Input Power: | 10 W CW Min, 57 dBm Peak 1% Duty Cycle |
| Control Signal: | TTL Logic |
| Power Supply: | +5 VDC @ 85 mA, -15 VDC @ 75 mA |
| Power & Control Connector: | Solder Pins |
| Connectors: | SMA Female |
| Size: | 1.85" x 1.25" x 0.4" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -54 °C to +95 °C |
| Non-Operating Temperature: | -65 ºC to +125 ºC |
| Shock: | MIL-STD-202, Method 213B Cond. J, 20 G (During Operation) & 125 g, 6 ms Saw Tooth Type, 3-Axis (No Operation) |
| Vibration: | MIL-STD-202, Method 214 Cond. A, 12G 30 MIN X, Y, Z-Axis (During Operation) & 20 g 30 MIN X, Y, Z-Axis (During Operation) |
| Altitude: | MIL-STD-202, Method 105C Cond. B, 200 Km (8.47e-7 hPa or 6.353e-7 torr/During Operation) |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
