| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency: | 0.1 to 20.0 GHz |
|---|
| Frequency Min: | 0.1 GHz |
|---|
| Frequency Max: | 20 GHz |
|---|
| Insertion Loss (Typ): | 5 dB |
|---|
| Isolation (Typ): | 80 dB |
|---|
| Reflective / Absorptive: | Absorptive |
|---|
| Switching Speed (Typ): | 300 ns |
|---|

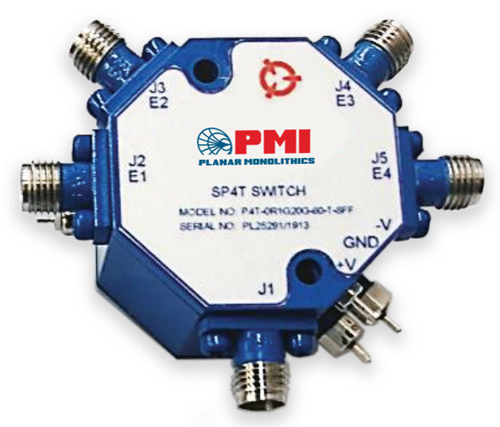

| Configuration: | SP4T |
|---|
| Isolation: | 80 dB Min |
|---|
| Insertion Loss: | 5.0 dB Max |
|---|
| VSWR In/Out: | 2.0:1 Max |
|---|
| Input Power: | +20 dBm CW |
|---|
| Switching Speed: | 300 ns Max |
|---|
| Control Signal: | TTL - Independent "1" = Off |
|---|
| Power Supply: | +5 VDC @ 200 mA,
-12 VDC @ 100 mA |
|---|
| Connectors: | SMA (F) - Removable |
|---|
| Size: | 1.25" x 1.25" x 0.70" - Radial |
|---|
| Finish: | Painted Gray |
|---|
| Features: | Low Insertion Loss, Ultra-High isolation, Fast Switching Speed, Small Size |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | 0 ºC to +55 ºC |
|---|
| Non-Operating Temperature: | -65 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
