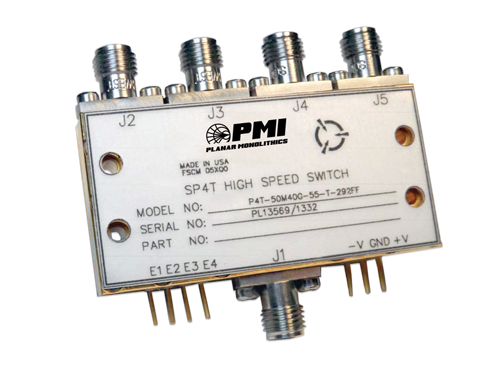

P4T-50M40G-55-T-292FF Active
SP4T Adsorptive Switch
Buy Now
Additional Documents
- Product Feature
- Test Report - 10/25/13
- S-parameters
- STEP Model
- PL13570 - Unit Data
- PL26841 - Unit Data
- PL27140 - Unit Data
- PL27141 - Unit Data
- PL27142 - Unit Data
- PL27143 - Unit Data
- PL27144 - Unit Data
- PL27145 - Unit Data
- PL28071 - Unit Data
- PL28072 - Unit Data
- PL31035 - Unit Data
- PL32236 - Unit Data
- PL32237 - Unit Data
- PL32238 - Unit Data
- PL32239 - Unit Data
- PL32791 - Unit Data
- PL35144 - Unit Data
- PL35145 - Unit Data
- PL35146 - Unit Data
- PL35147 - Unit Data
- PL35252 - Unit Data
- PL53186 - Unit Data
- PL53187 - Unit Data
- PL53188 - Unit Data
- PL53189 - Unit Data
- PL57349 - Unit Data
- PL57350 - Unit Data
- PL57351 - Unit Data
- PL57352 - Unit Data
- PL57353 - Unit Data
PMI Model P4T-50M40G-55-T-292FF is a 0.05 to 40 GHz, Single Pole, Four Throw, Absorptive Switch. This switch offers 55 dB of port-to-port isolation and a maximum insertion loss of 8 dB and a switching speed of 100 ns and is independently TTL controlled. The operating power is 20 dBm CW and it has a VSWR of 2.5:1 maximum. Housing size is 2.0" x 1.0" x 0.4" and has 2.92mm female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Configuration: | SP4T |
| Reflective / Absorptive: | Absorptive |
| Frequency (GHz): | 0.05 to 40 |
| Frequency Min (GHz): | 0.05 |
| Frequency Max (GHz): | 40 |
| Insertion Loss (dB): | 8 dB Max |
| Insertion Loss - Typ (dB): | 7 dB |
| Isolation (dB): | 55 dB Min |
| Isolation - Typ (dB): | 70 dB |
| Switching Speed: | 85 ns Typ, 100 ns Max (50% TTL to 10% / 90% RF) |
| Switching Speed - Typ: | 20 ns |
| VSWR In/Out: | 2.5:1 Max - Measured 2.13:1 Input/2.22:1 Output |
| Input Power: | 20 dBm CW |
| Survival Power: | 0.5 W CW, 5 W Peak, 1 µs |
| RFI Leakage: | SMA & Pins = <-100 dB per MIL-C-39012 |
| Power Supply: | +12 to +15 VDC @ 150 mA - Measured 75 mA, -12 to -15 VDC @ 100 mA - Measured 100 mA |
| Control Signal: | 4 Line Independent, Logic "0" = Insertion Loss, Logic "1" = Isolation |
| Power & Control Connector: | Feedthru - Ø0.030 Typ |
| Connectors: | 2.92mm Female for Low Leakage |
| Size: | 2.0" x 1.0" x 0.4" |
| Finish: | Gold Plated |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -40 ºC to +85 ºC |
| Non-Operating Temperature: | -55 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond A |
