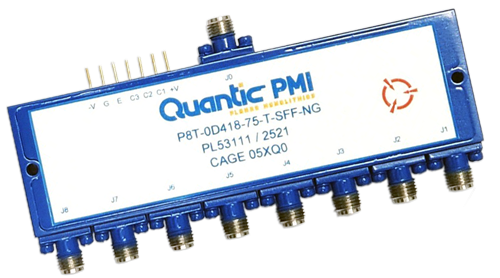

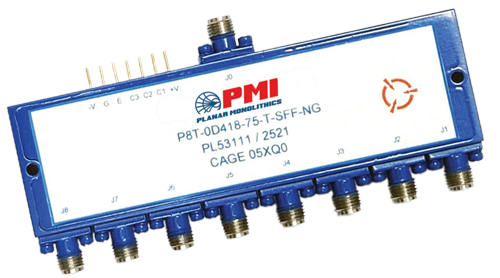

| General Parameters: |
|---|
| Status: | Active |
|---|
| Configuration: | SP8T |
|---|
| Reflective / Absorptive: | Absorptive |
|---|
| Frequency (GHz): | 0.4 to 18 |
|---|
| Frequency Min (GHz): | 0.4 |
|---|
| Frequency Max (GHz): | 18 |
|---|
| Insertion Loss (dB): | 3.4 dB (0.4 to 10 GHz),
4.5 dB Max (10 to 18 GHz) |
|---|
| Isolation (dB): | 75 dB Min |
|---|
| Input Power (dBm): | 25 dBm CW Max (20 dBm Hot Switching) |
|---|
| Power Supply: | +5 ± 0.25 VDC @ 250 mA Max
-12 ± 0.25 VDC @ 100 mA Max |
|---|
| Return Loss (All Ports On or Off State): | 10 dB Min |
|---|
| Rise/Fall Time (10% to 90% RF, 90% to 10% RF): | 50 ns Max |
|---|
| On/Off Time (50% TTL to 90% RF, 50% TTL to 10% RF): | 100 ns Max |
|---|
| Impedance: | 50 Ohm |
|---|
| Control Signal: | TTL (Encoded 3-BIT) - All OFF condition use Enable Pin |
|---|
| Power & Control Connector: | Solder Pins |
|---|
| Connectors: | SMA Female |
|---|
| Size: | 4.02" x 1.18" x 0.39" |
|---|
| Finish: | Blue Paint |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -40 °C to +85 °C |
|---|
| Non-Operating Temperature: | -65 °C to +125 °C |
|---|
| Humidity: | MIL-STD-202, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
|---|
