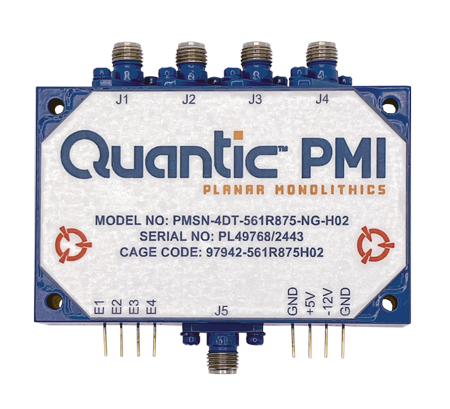

PMSN-4DT-561R875-NG-H02 Active
Terminated SP4T Integrated Switch Module
Quantic PMI Model PMSN-4DT-561R875-NG-H02, is a terminated single pole four throw integrated switch module, which includes high speed SP4T, pin diode limiter, video filter, gain equalizer, attenuator and amplifier. The module is designed to operate from 0.7 to 1.3 GHz with 4 dB insertion loss, high switching speed, extreme low video transient, minimum 6 dBm P1dB and a minimum 35 dB reverse isolation. Package size is 2.8" x 1.45" x 0.6" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Configuration: | SP4T |
| Reflective / Absorptive: | Absorptive |
| Frequency (GHz): | 0.7 to 1.3 |
| Frequency Min (GHz): | 0.7 |
| Frequency Max (GHz): | 1.3 |
| Insertion Loss (dB): | 0.5 dB or -1 dB Max from room temperature (over operating temperature) |
| Isolation (dB): | 65 dB Min from unselected input to output, 35 dB Min from output to selected input, 70 dB Min from isolation input to input, -60 dBm Max spectral energy leakage from 0.7 to 1.3 GHz |
| Switching Speed: | 25 ns Max (50% TTL to 90% RF) |
| Switching Time: | 25 ns Max from 50% TTL to 90% RF Output |
| VSWR In/Out: | Input: 1.4: 1 Max, Out: 1.6: 1 Max |
| P1dB: | 6 dBm Min (Input) |
| Power Supply: | +5 VDC ± 3.8% @ 320 mA Max, -12 VDC ± 3.8% @ 50 mA Max |
| Path Gain: | -4.0 ± 0.6 dB |
| Harmonics: | -20 dBC Max when Pin = 3 dBm -65 dBC Max when Pin = -20 dBm |
| Spurious: | -60 dBC Max when Pin = 3 dBm -65 dBc Max when Pin -20 dBm |
| Insertion Phase Variation: | ±1.5° Max for any 0.05 segment |
| Insertion Gain Variation: | ±1.5° Max for any 0.05 segment |
| Video Feedthrough: | -70 dBm from 0.5 to 1.3 GHz, -60 dBm Max after a duration of 30 ns and 25 ns, respectively |
| Switch Control: | "O" ON, "1" OFF |
| RF Input Power: | 3 dBm CW (Operating), 25 dBm CW |
| IP3: | 15.5 dBm Min (Input) |
| Power & Control Connector: | Solder Pins |
| Connectors: | SMA Female |
| Size: | 2.8" x 1.45" x 0.6" |
| Weight: | 4 oz Max |
| Sealing: | Hermetic |
| Finish: | Painted blue, mounting surface chemical conversion coat PER MIL-C-5541, Class 3 |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -40 °C to + 85 °C |
| Non-Operating Temperature: | -54 °C to + 95 °C |
| Humidity: | MIL-STD-202, METHOD 103 CONDITION 8, UP TO 100% CONDENSING |
| Shock: | MIL-STD-883, METHOD 2002, CONDITION B |
| Vibration: | MIL-STD-883, METHOD 2026, CONDITION 1-D, 5 Min Max |
| Altitude: | MIL-STD-202, METHOD 105, 60, 000 FT. |
| Temperature Cycle: | MIL-STD-202, METHOD 107, CONDITION A, MAX TEMP +95°C |
| Salt Fog: | MIL-STD-202, METHOD 101 E, 40 HOURS |
| Acoustical Noise: | MIL-STD-810, METHOD 515, LEVELS PER SCD FIG.4 |
| Resistance to Solvents: | MIL-STD-883, METHOD 2015 |
