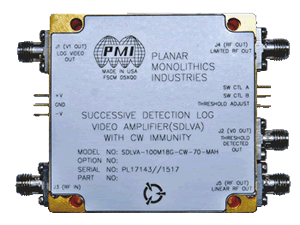

PMI offers a variety of DLVA's, ERDLVA's and SDLVA's covering the DC to 40 GHz frequency range.  PMI's DLVA's and SDLVA's offer high dynamic range along with excellent temperature stability.  As well, most SDLVA's provide a limited IF output.  In addition to our standard models, many new models are currently in development. If you do not see exactly what you need, please email your requirement to sales@pmi-rf.com so we can propose an instant solution.

Part NumberStatusFrequency RangeFrequency MinFrequency MaxTSSSizeLog SlopeDynamic Range Log
DLVA-2G18G-38-50MVPreliminary2.0 to 18.0 GHz2 GHz18 GHz-39 dBm max.5.12" x 2.50" x 1.00"50 mV/dB ± 5 mV/dB
-
DLVA-2G4G-40-50MVPreliminary2.0 to 4.0 GHz2 GHz4 GHz-43 dBm max.2.64" x 1.97" x 0.56"50 mV/dB ± 2 mV/dB
-
DLVA-2G40G-49dBPreliminary2.0 to 40.0 GHz2 GHz40 GHz
-
2.0" x 1.50" x 0.40"50 mV/dB typ. 100 Ohms Load
-
DLVA-60M-70-25MVPreliminary60 MHz
-
-
-
-
-
-
DLVA-6D5G18G-70-JMAKG1Preliminary6.5 to 18.0 GHz6.5 GHz18 GHz-72 dBm min.
-
25 mV/dB (±10%) @ 50 Ohm Load
-
DLVA-0R4G1G-55-AC-SFFPreliminary0.4 GHz to 1.0 GHz0.4 GHz1 GHz-60 dBm Max2.50" X 1.50" X 0.20"
-
-
DLVA-100M210M-70DB-50RPreliminary0.10 to 0.21 GHz0.1 GHz0.21 GHz-77 dBm Typ, -74 dBm Max1.72" x 1.11" x 0.26"
-
-
DLVA-12G20G-40Preliminary12.0 to 20.0 GHz12 GHz20 GHz-42dBm min2.75 X 1.5 X 0.5 inches100mV/dB
-
DLVA-6G18G-50-1-SFFPreliminary6.0 to 18.0 GHz6 GHz18 GHz-73dBm min3.2 " x 2.05 " x 0.4"25mV/dB (±10%) @ 50Ohm Load
-
DLVA-6G18G-50-OPT50MVPreliminary6.0 to 18.0 GHz6 GHz18 GHz-72 dB min.3.2 " x 2.05 " x 0.4"50 mV/dB (±10%)
-
DLVA-8G10G-49-50-SFFPreliminary8.0 to 10.0 GHz8 GHz10 GHz-57 dBm1.0" x 1.5" x 0.3"50 ±4 mV/dB
-
DLVA-8G10G-75-50-SFFActive8.0 to 10.0 GHz8 GHz10 GHz-78 dBm2.0" x 1.5" x 0.4"50 ± 4 mV/dB - Measured 50 ±1.7 mV/dB-75 to 0 dBm
DLVA-8G10G-80-50-SFFPreliminary8.0 to 10.0 GHz8 GHz10 GHz-80 dBm2.0" x 1.5" x 0.4"50 ±4 mV/dB
-
DLVA-9G18G-35-50MV-CWPreliminary9.0 to 18.0 GHz9 GHz18 GHz-40 dBm typ.3.5" x 2.5" x 0.5"50 mV/dB nominal-33 dBm to 0 dBm
DVA-9G11G-25Preliminary9.0 to 11.0 GHz9 GHz11 GHz
-
2.57" X 2.00" X 1.13"
-
-
ERDLVA-17G35G-68-50MVPreliminary17.0 to 35.0 GHz17 GHz35 GHz-68 to -72 dBm Min
-
50 mV Nom
-
ERDLVA-1840-60-50MVPreliminary18.0 to 40.0 GHz18 GHz40 GHz-68 dBm Min
-
50 mV Nom
-
ERDLVA-18G40G-65-50MVPreliminary18.0 to 40.0 GHz18 GHz40 GHz-65 dBm typ.1.6" x 1.5" x 0.31"50 ±4 mV/dB
-
ERDLVA-1G18G-68-50MVPreliminary1.0 to 18.0 GHz1 GHz18 GHz-68 to -72dBm min
-
50mV nom
-
ERDLVA-1G18G-70-50MV-CWPreliminary1.2 to 18.0 GHz1.2 GHz18 GHz-72dBm min
-
50mV/dB ±5% over -60 to 0dBm
-
ERDLVA-1G40G-50-50Preliminary1.0 to 40.0 GHz1 GHz40 GHz-52 dBm @ 25°C2.37" x 1.80" x 0.42"
-
-
ERDLVA-218-70-50MVPreliminary2.0 to 18.0 GHz2 GHz18 GHz-70 dBm3.5" x 2.5" x 0.5", 88.9 mm x 63.5 mm x 12.7 mm50 mV/dB nominal-65 dBm to 5 dBm
ERDLVA-218-CW-75MVPreliminary2.0 to 18.0 GHz2 GHz18 GHz-42 dBm
-
75 ±10 mV max. per dB
-
ERDLVA-218-CW-LPDActive2.0 to 18.0 GHz2 GHz18 GHz-64 dBm Min.
-
77 mV/dB (±5 mV) - Measured 74.19mV/dB @ 10 GHz
-
ERDLVA-218-DC-LPDActive2.0 to 18.0 GHz2 GHz18 GHz-64 dBm Max
-
+85 mV/dB - Measured +85.6 mV/dB
-
ERDLVA-2G18G-70-50MVPreliminary2.0 to 18.0 GHz2 GHz18 GHz-70 dBm typ. -65 dBm min.2.90 X 2.95 X 0.50 (excluding connectors)50.0 mV/dB typ.
-
ERDLVA-2G6G-70-50MVPreliminary2.0 to 6.0 GHz2 GHz6 GHz-70 dBm @ 85 ºC1.90" x 1.50" x 0.31"60 mm x 38 mm x 7.9 mm50 mV/dB ±4.0 mV/dB-65 dBm to + 5 dBm
ERDLVA-6G18G-70-50MVPreliminary6.0 to 18.0 GHz6 GHz18 GHz-70 dBm @ 85 ºC1.90" x 1.50" x 0.31", 60 mm x 38 mm x 7.9 mm50 mV/dB ±4.0 mV/dB-65 dBm to + 5 dBm
GMDA-CW0518-30Preliminary0.5 to 18.0 GHz0.5 GHz18 GHz-43 dBm min2.3" x 2.3" x 0.47"280 mV/dB with ±12 mV/dB tolerance@Input Power -40 to -10dBm, Transition from 280 mV/dB tolerance@Input Power -10 to 0dBm, 0 mV/dB with ±12 mV/dB tolerance@Input Power 0 to +20dBm
-
GMDA-D0206-45Preliminary2.0 to 6.0 GHz2 GHz6 GHz-43dBm
-
50mV/ dB nominal
-
GMDA-D1006Active2.0 to 6.0 GHz2 GHz6 GHz-65 dB Min
-
+25 ±1 mV/dB @ Room Temperature, +25 ±1.5 mV/dB Over Temperature, +25 mV/dB Typ
-
HADA-D1009Preliminary3.0 to 3.4 GHz3 GHz3.4 GHz-73 dBm Max3.0" x 4.0" x 0.5"+50 ± 3 mV/dB
-
MDA-1146Preliminary2.0 to 18.0 GHz2 GHz18 GHz-55 dBm max.3.5" x 3.2" x 0.5"+25±1 mv/dB at Room Temperature, +25±2 mv/dB over Room Temperature, +25 mv/dB typ.
-
PLVA-218-50 *Active2.0 to 18.0 GHz2 GHz18 GHz-42 dBm min.2.20" x 1.50" x 0.40"50 mV/dB - Measured 50.4 mV/dB
-
PLVA-218-50-518Preliminary5.0 to 18.0 GHz5 GHz18 GHz
-
2.2" x 1.5" x 0.4"50 mV/ dB min.
-
PLVA-218-50-9G10GActive9.0 to 10.0 GHz9 GHz10 GHz-42dBm min.2.20" x 1.50" x 0.40"50mV/dB
-
DLVA-2G4G-45-70-CD-1Active2.0 to 4.0 GHz2 GHz4 GHz
-
3.035" x 0.91" x 0.35"
-
-
DLVA-500M18G-70Active0.5 to 18.0 GHz0.5 GHz18 GHz
-
2.20" x 1.50" x 0.40"70 mV/dB - Measured 66 mV/dB
-
DLVA-6G18G-50 *Active6.0 to 18.0 GHz6 GHz18 GHz-72 dB min.3.2 " x 2.05 " x 0.4"25 mV/dB (±10%) - Measured 25 mV/dB
-
GMDA-2G6G-50MVActive2.0 to 6.0 GHz2 GHz6 GHz-65 dB min.
-
+50 ±2 mV/dB @ Room Temperature, +50 ±3 mV/dB Over Temperature, +50 mV/dB typ. - Measured 51.0 mV/dB
-
GMDA-D5459-70Active5.4 to 5.9 GHz5.4 GHz5.9 GHz
-
7.38" x 3.88" x 1.25"25 mV/dB Typ. - Measured 25.2 mV/dB
-
DLVA-218-45-100MV-CWActive2.0 to 18.0 GHz2 GHz18 GHz-45 dBm Typ3.5" x 2.5" x 0.5", 88.9 mm x 63.5 mm x 12.7 mm100 mV/dB Nominal - Measured 99.2 mV/dB-40 dBm to +5 dBm
EWDM-2G6G-65-70MVActive2.0 to 6.0 GHz2 GHz6 GHz-71 dBm Max4.2” x 2.9” x 0.8”
-
-
EWDM-6G18G-65-70MVActive6.0 to 18.0 GHz6 GHz18 GHz-71 dBm Max4.2” x 2.9” x 0.8”
-
-
ERDLVA-18G40G-65-50-1Preliminary18.0 to 40.0 GHz18 GHz40 GHz-68 dBm @ 85 ºC1.90" x 1.50" x 0.31" 60 mm x 38 mm x 7.9 mm50 mV/dB ±4.0 mV/dB-65 dBm to + 0 dBm
GMDA-D1003Active7.0 to 18.0 GHz7 GHz18 GHz-75 dBm Max2.90" x 3.00" x 0.50"+25.0 ± 1.0 mV/dB Typ - Measured 25.5 mV/dB
-
GMDA-D1005Active0.46 to 1.1 GHz0.46 GHz1.1 GHz-65 dBm Max3.5" x 3.2" x 0.5"+25 ± 1 mv/dB Typ
-
PLVA-500M18G-50Active0.5 to 18.0 GHz0.5 GHz18 GHz-42 dBm Min2.20" x 1.50" x 0.40"50 mV/dB - Measured 50.1 mV/dB
-
SDLVA-218-71-70MVActive2.0 GHz to 18.0 GHz2 GHz18 GHz-72dBm3.5 " x 2.5 " x 0.5"70mV/dB-66 to +5dBm
PLVA-218-50-618Active6.0 to 18.0 GHz6 GHz18 GHz-40 dBm min.2.20" x 1.50" x 0.40"50 mV/dB - Measured 50.6 mV/dB
-
EWDM-2G6G-65-70MV-1Preliminary2.0 to 6.0 GHz2 GHz6 GHz-71 dBm Max4.2” x 2.9” x 0.8”70 mV/dB, Nominal-65 to 0 dBm
HADA-D2001Active0.5 to 2.0 GHz0.5 GHz2 GHz-44 dBm Min2.50" x 1.50" x 0.44"
-
-
EWDM-6G18G-65-70MV-1Preliminary6.0 to 18.0 GHz6 GHz18 GHz
-
4.2” x 2.9” x 0.8”70mV/dBm, Nominal
-
GMDA-D1004Active2.0 to 18.0 GHz2 GHz18 GHz-65 dBm Max3.5" x 3.2" x 0.5"+25 ± 1 mV/dB at Room Temperature - Measured 24.9 mV/dB +25 ± 2 mV/dB over Room Temperature - Measured 24.7 mV/dB +25 mV/dB typ
-
DLVA-18G40G-42-50-CD-1Active18.0 to 40.0 GHz18 GHz40 GHz-34 dBm1.86" x 1.69" x 0.40"50 mV/dB ±3 dB - Measured +51.83 mV/dB
-
EWDM-2G8G-65-70MVActive2.0 to 8.0 GHz2 GHz8 GHz-71 dBm2.82” x 2.25” x 0.5”70 mV/dB ±3 mV/dB
-
GMDA-D1007Active0.5 to 2.0 GHz0.5 GHz2 GHz-65 dBm Max3.5” x 3.2” x 0.5”+25 ± 1 mV/dB @ Room Temperature, +25 ± 2 mV/dB Over Temperature, +25 mV/dB Typ, Measured 25.1 mV/dB @ -54 °C, 25.0 mV/dB @ +25 °C, 25.7 mV/dB @ +85 °C
-
DLVA-6D5G18G-70-JMAKG2Active6.5 to 18.0 GHz6.5 GHz18 GHz-72 dB min.3.2 " x 2.05 " x 0.4"25 mV/dB (±10%) @ 50 Ohm Load
-
EWDM-8G18G-65-70MVActive8.0 to 18.0 GHz8 GHz18 GHz-71 dBm2.82” x 2.25” x 0.5”70 mV/dB ±3 mV/dB
-
ERDLVA-8G18G-65-70MVActive8.0 to 18.0 GHz8 GHz18 GHz-71 dBm2.82” x 2.25” x 0.5”70 mV/dB ±3 mV/dB
-
ERDLVA-2G8G-65-70MVActive2.0 to 8.0 GHz2 GHz8 GHz-71 dBm2.82” x 2.25” x 0.5”70 mV/dB ±3 mV/dB
-
HADA-D2002Active2.0 to 18.0 GHz2 GHz18 GHz-40 dBm Min2.50" x 1.50" x 0.44"
-
-
